Monitoring System and Cool Leak Test provide two approaches to cooling-line monitoring and testing.
Monitoring System
Measure cooling-water output, record flow and temperature, generate alarms.
Cool Leak Test · CLT
PLC-controlled air-pressure drop test for leakage in the cooling circuit.

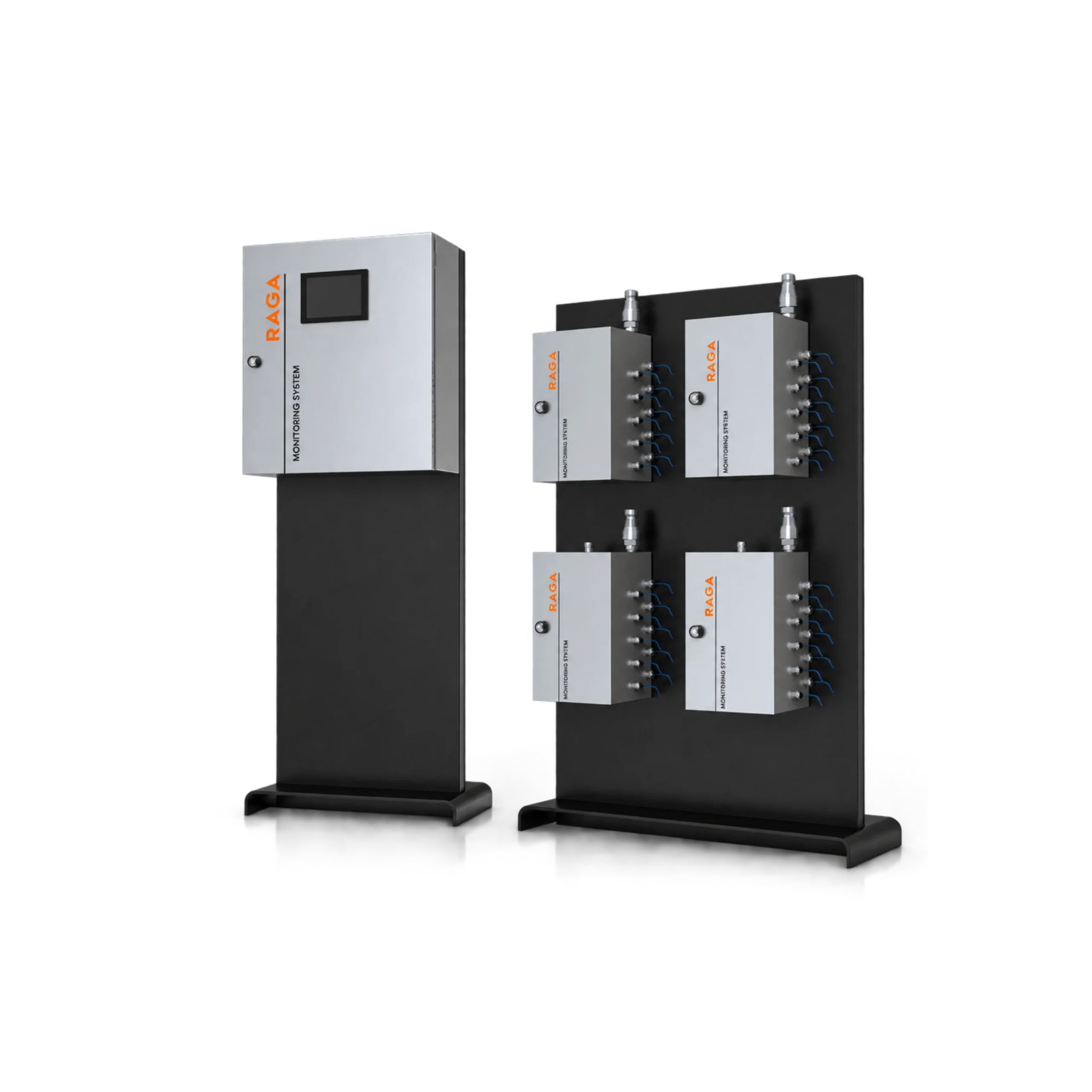

Monitoring System
Measure cooling-water output, record flow and temperature, and generate alarms for abnormal conditions.
The Monitoring System can be integrated with RAGA or other jet cooling machines. The controller and data connection are selected for the installed equipment.
For a visual indication of flow without electronics, see the Visual Flow Manifold.

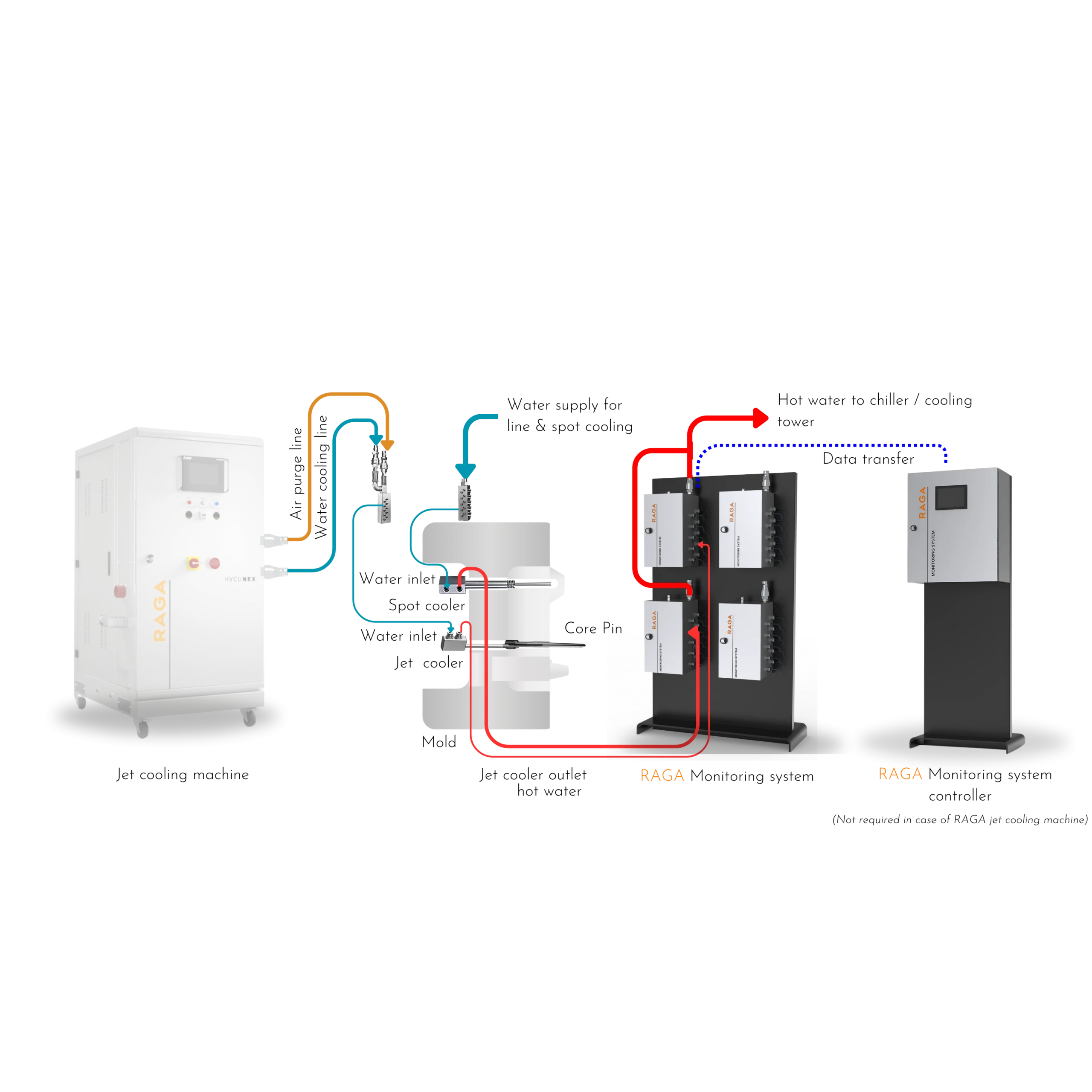

Monitoring System connected to jet, spot and line cooling
Cool Leak Test

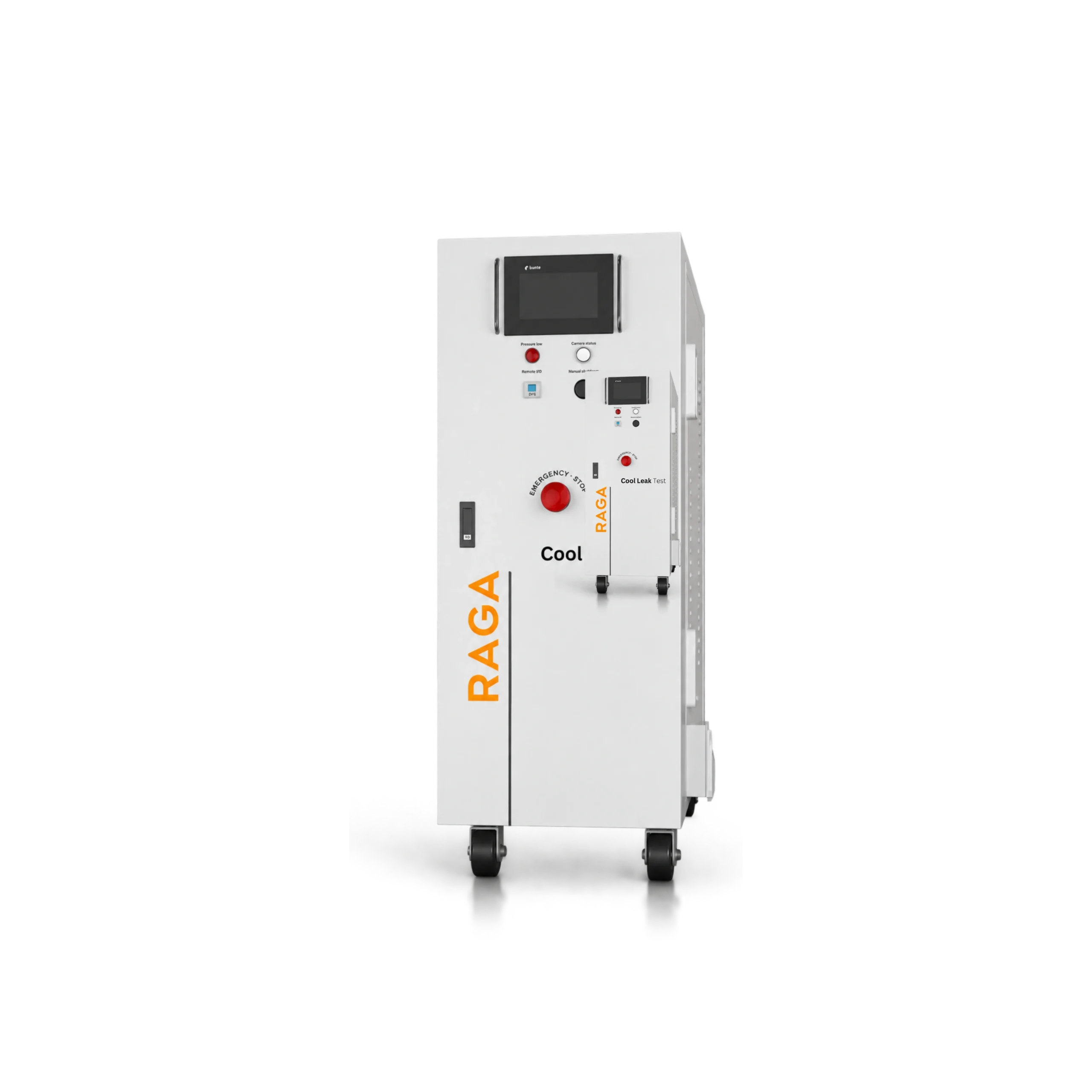

Cool Leak Test
PLC-controlled testing includes an air-pressure drop test to check for leakage in the cooling circuit.
Cool Leak Test is identified by the model code CLT. Share the cooling-line arrangement and required test sequence to define the application.

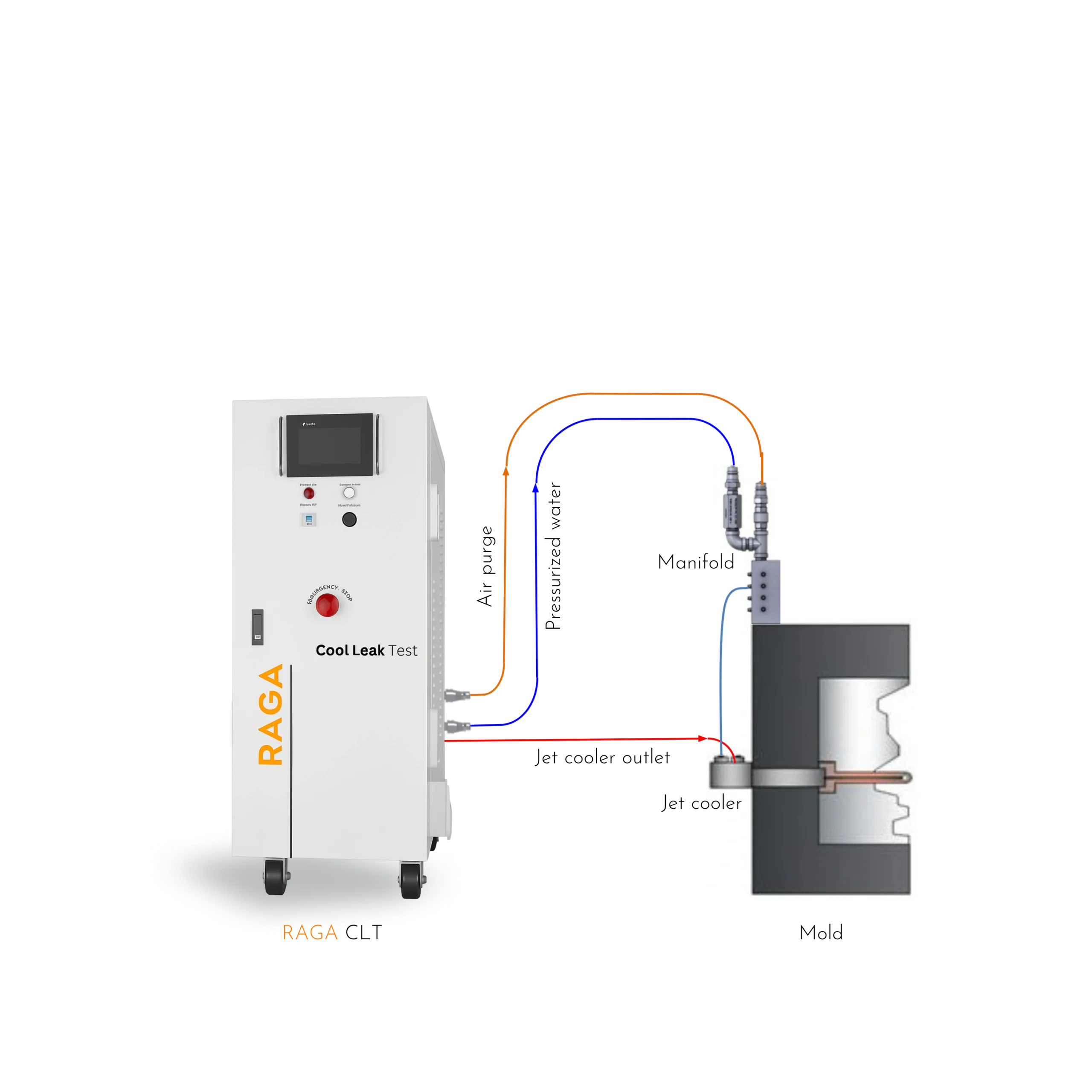

Cool Leak Test · cooling-line test arrangement
Test arrangement
The tester connects to the cooling lines of the mold and runs the programmed sequence; the current catalogue lists a minimum flow rate of 0.5 L/min for CLT, with confirmation required when processing the order.
Monitoring System configurations
| Configuration | Connections | Max. working pressure | Max. temperature |
|---|---|---|---|
| Monitoring System 04 | 4 | 20 bar | 100 °C |
| Monitoring System 08 | 8 | 20 bar | 100 °C |
| Monitoring System 16 | 16 | 20 bar | 100 °C |
Choose the connection count to match the cooling lines being monitored.
Cool Leak Test
| Model code | Connections | Max. working pressure | Water test pressure |
|---|---|---|---|
| CLT | 10 | 20 bar | 16 bar |
CLT connection count and listed water-test pressure. Define the air-test conditions for the application.
