Jet Cooling Machines
Supply and control water cooling and air purging for jet-cooled core pins and inserts.
PRO
Entry-level, 20 pins, 2 channels.
NEX · NEXplus
20 to 100 pins, 2 to 6 channels, flow measurement per channel.
PRO, NEX and NEXplus
Three machines, one circuit. Pin capacity and channel count are selected together for the mold.

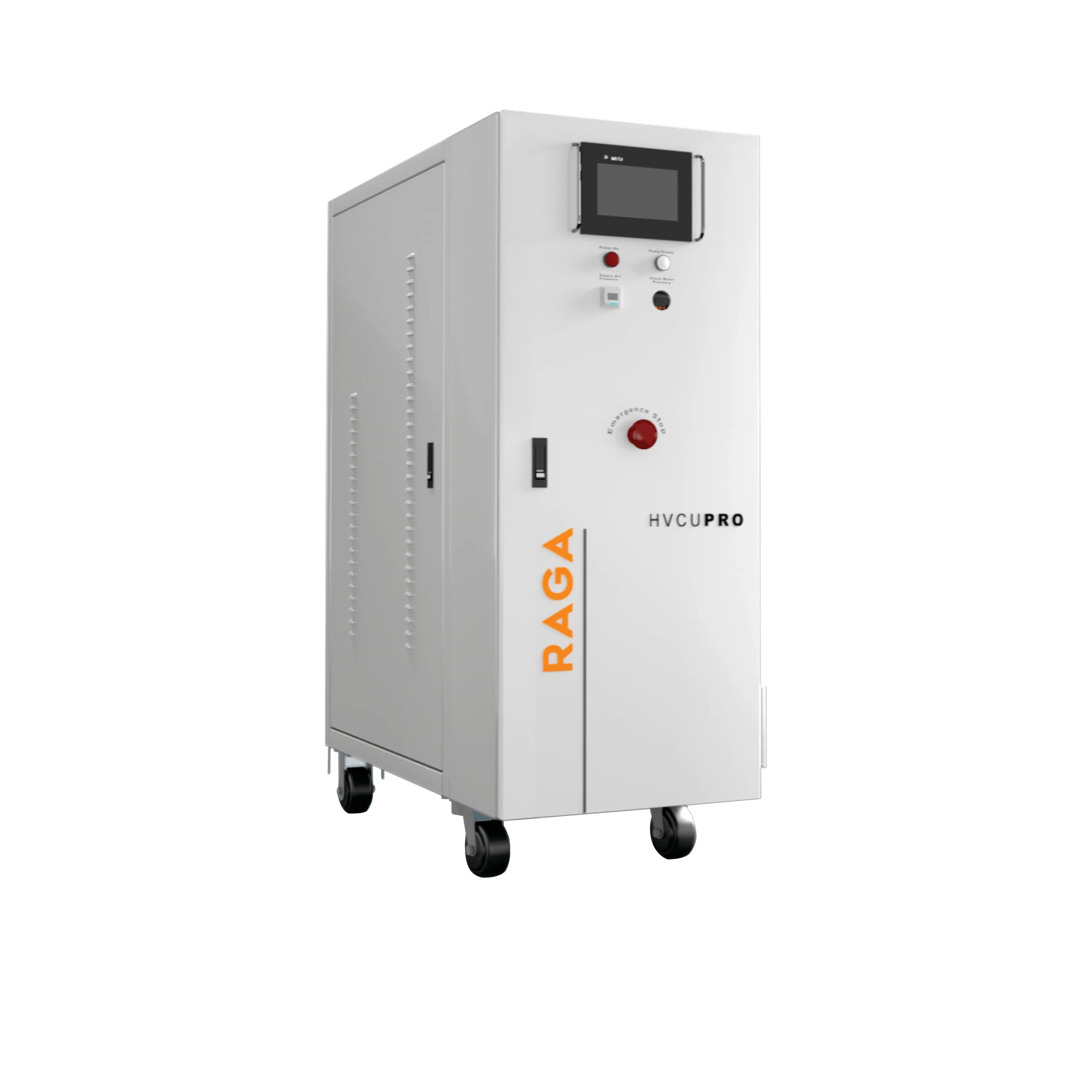

PRO
An entry-level machine with a 20-pin, two-channel configuration.
20 pins · 2 channels
NEX
Jet cooling with channel flow measurement and process monitoring functions.
20 · 40 · 60 · 100 pins · 2 · 4 · 6 channels

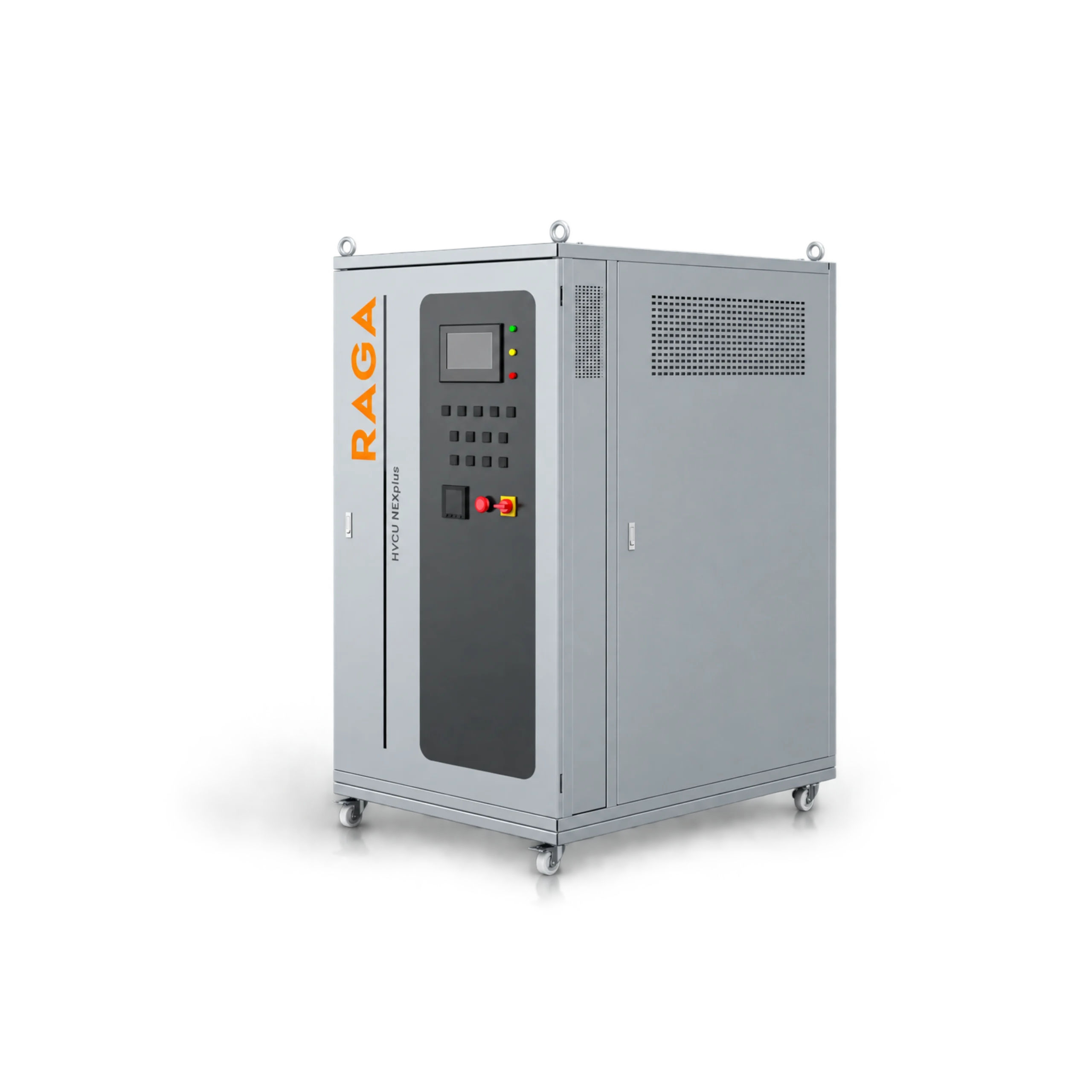

NEXplus
Jet cooling with integrated water temperature and scaling control.
20 · 40 · 60 · 100 pins · 2 · 4 · 6 channels

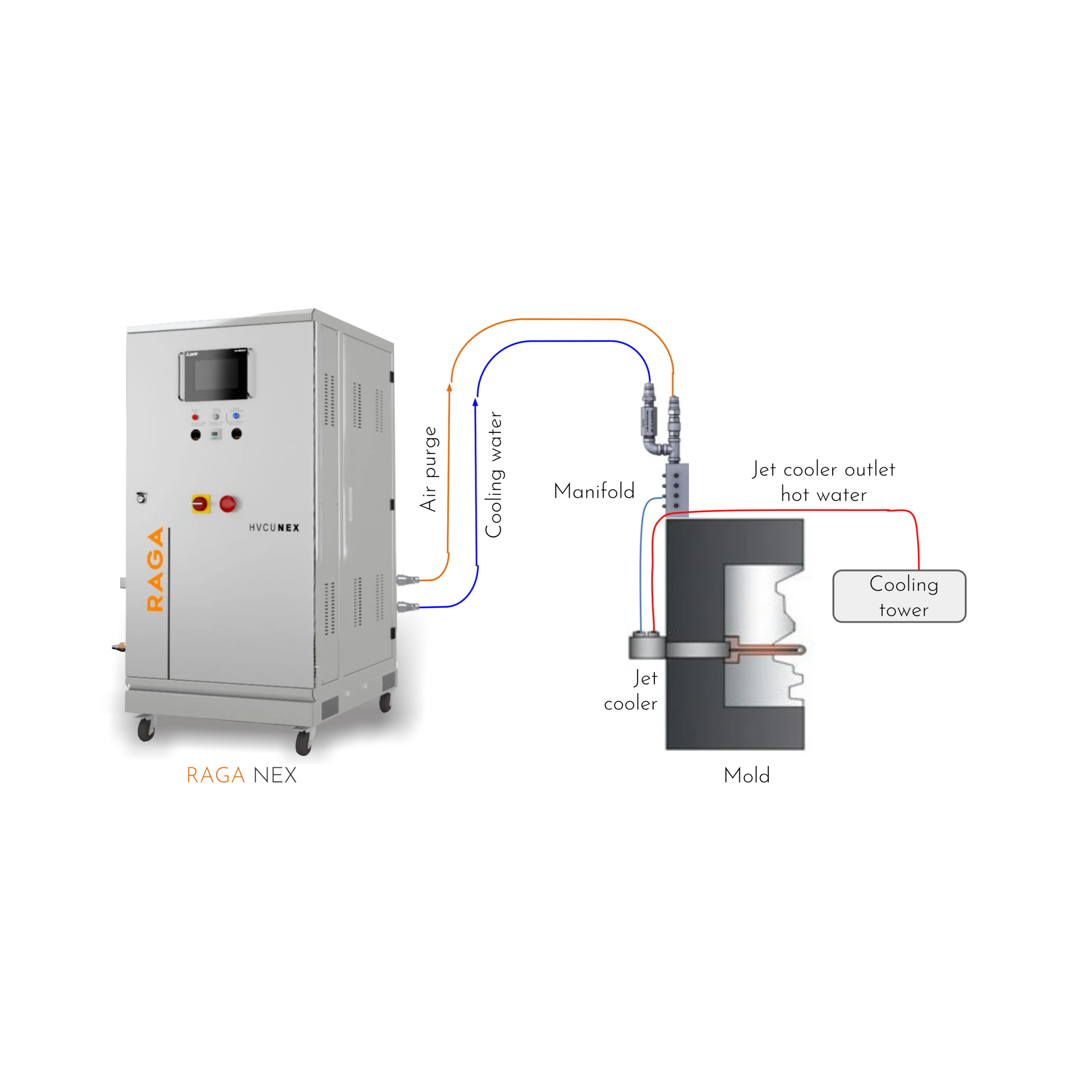

Cooling circuit
The machine supplies the circuit through manifolds and jet coolers. Pin count, cooling channels and connections are selected together around the mold.
- Jet cooling machine — supplies and controls cooling water and air purge, channel by channel.
- Manifold — distributes the circuit to each tube connection at the mold.
- Jet cooler — carries water into the bore of the core pin and returns it.
- Core pin — jet-cooled pins take heat out of the casting where it is thickest.
For separate water conditioning, see AquaControl.
Jet cooling circuit · RAGA NEX · manifold · jet cooler · core pin · cooling tower
Model comparison
| Function | PRO | NEX | NEXplus |
|---|---|---|---|
| Integrated temperature control | No | No | Yes |
| Integrated scaling control | No | No | Yes |
| Flow measurement per channel | No | Yes | Yes |
| Air and water pressure measurement | Yes | Yes | Yes |
| Core pin breakage detection | No | Yes | Yes |
| Error diagnostics and recording | Yes | Yes | Yes |
Compare the available control functions before choosing the cooling configuration.
Pin capacity and cooling channels
| Model | Core-pin capacity options | Cooling-channel options |
|---|---|---|
| PRO | 20 | 2 |
| NEX | 20, 40, 60 or 100 | 2, 4 or 6 |
| NEXplus | 20, 40, 60 or 100 | 2, 4 or 6 |
Share the pin count, cooling sequence, circuit drawing and available utilities so the configuration can be matched to the application.
