What is Porosity in Die-Casting & How to Minimize it?

One of the most widely used method in the manufacturing of high precision metal components is die casting. Industries like automotive, aerospace, and electronics heavily on depend on die casting because of the dimensional accuracy, strength, and excellent surface finish that die casting has to offer.

However, one major challenge in die casting is porosity.

So, what is porosity in die-casting?

Porosity, in simple words, is small voids, air pockets, or cavities formed inside or on the surface of components during the casting process. Such defects can impact the strength, create leakage issues, and affect the overall quality of the product.

Therefore, it is important to understand porosity and how to minimize it for manufacturers looking to improve casting performance, reduce rejection rates, and maintain the consistency in quality.

Read More:- Metal Casting Technology Advancements: Exploring New Technology in Casting

What is Die Casting?Porosity

The answer to “what is die casting” is understanding how molten metal is shaped into components or parts for industrial applications.

Die casting is a process in which molten metal is injected into a mold cavity under high pressure. The molten metal then solidifies inside the mold and the desired component is produced.

The process is popularly used for manufacturing:

• Automotive parts
• Electronic housings
• Industrial machinery components
• Consumer products

Benefits of Die Casting

• High production speed
• Excellent dimensional accuracy
• Smooth surface finish
• Minimal machining requirements
• Suitable for mass production

Read More :- Plunger Tip for Die Casting: Key to Precision and Efficiency

Common Die Casting Processes

Die casting process depend on the material type, production volume, and application requirements. Therefore, based on all these, die casting processes are further segmented into:

Hot Chamber Die Casting

In hot chamber die casting, the injection mechanism is immersed in molten metal itself. The process is faster and perfect for the casting of low melting-point alloys such as zinc and magnesium

Best Used For:

• Zinc components
• Small precision parts
• High-volume manufacturing

Cold Chamber Die Casting

In cold chamber die casting, molten metal is poured into the chamber separately before injection. This process of die casting is suitable for metals with higher melting temperatures such as aluminum.

Best Used For:

• Automotive components
• Structural parts
• Large industrial castings

Gravity Die Casting Process

The gravity die casting process uses gravity instead of high pressure to fill the mold cavity. Molten metal is poured into a fixed mold and allowed to flow into the cavity under gravity.

Advantages of Gravity Die Casting:

• Lower turbulence
• Reduced gas entrapment
• Better mechanical properties

Limitations of Gravity Die Casting:

• Slower production cycle
• Less suitable for highly complex thin-wall parts

Difference Between Gravity and Pressure Die Casting

Factor	Gravity Die Casting	Pressure Die Casting
Metal Flow	Gravity-fed	High-pressure injection
Production Speed	Moderate	Very high
Porosity Risk	Lower	Higher
Part Complexity	Medium	High

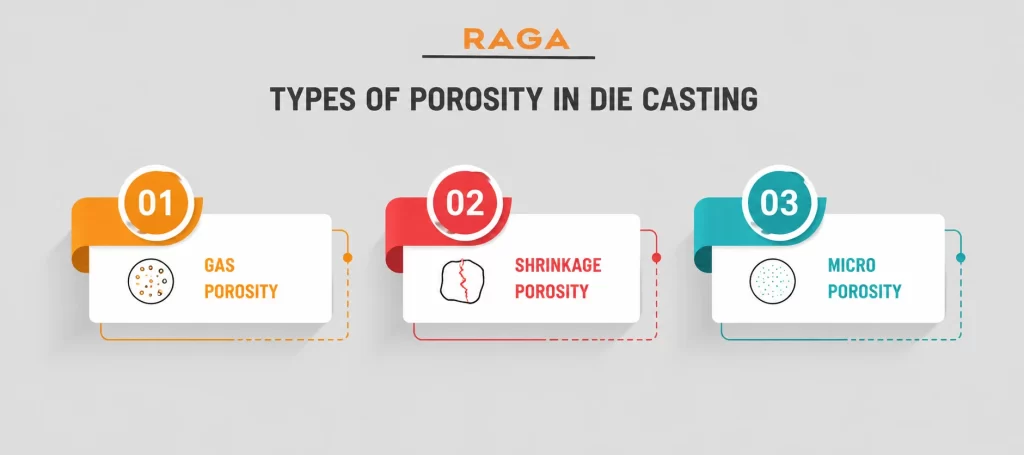

Types of Porosity in Die Casting

Gas Porosity

Gas porosity occurs when gases are trapped inside molten metal during injection.

Causes of Gas Porosity

• Trapped air
• Moisture
• Excess lubricant
• Poor venting

Appearance

• Round voids
• Smooth internal cavities

Shrinkage Porosity

Shrinkage porosity forms when the metal solidifies. As molten metal cools, it contracts. If enough molten metal is not supplied during solidification then it leads to the formation of voids.

The common areas in which shrinkage usually occurs are thick wall sections and hot spots in the mold.

Micro Porosity

Micro porosity consists of extremely small voids which are not visible to the naked eye. Although these defects are tiny but can:

• Reduce fatigue strength
• Affect structural integrity
• Create sealing problems

Read More :- Understanding Porosity in Casting: Causes, Types, Effects, and Prevention

Causes of Porosity in Die Casting

Improper Mold Design Poor gating and venting systems trap air inside the cavity

Incorrect Temperature Control Improper mold temperature impacts solidification

Poor Venting System Improper venting prevents gases from escaping

Fast Injection Speeds High-speed injection creates turbulence and air entrapment

Contaminated Molten Metal Impurities and moisture can increase gas formation



Effects of Porosity on Die Cast Parts

Reduced Mechanical Strength Voids weaken the internal strength of components

Leakage Problems Porosity creates leakage paths in pressure-tight parts

Poor Surface Finish Surface defects reduce the aesthetic quality

Reduced Product Lifespan Porous parts are more vulnerable to cracking and fatigue

How to Minimize Porosity in Die Casting

Optimize Mold Design

Proper mold engineering is required to minimize porosity in die casting.

Key Improvement Areas:

• Efficient gating systems
• Proper venting channels
• Balanced metal flow

These measures can reduce the turbulence and minimize the formation of trapped gases.

Control Process Parameters

Maintaining stable process conditions can help you to reduce defects in the die casting process.

Important Parameters To Consider

• Correct melt temperature
• Controlled mold temperature
• Optimized injection speed
• Proper intensification pressure

Use Vacuum-Assisted Die Casting

Vacuum systems remove trapped air before metal injection.

Benefits of Vacuum Assisted Die Casting:

• Reduced gas porosity
• Improved density
• Better mechanical properties

Vacuum die casting is popularly used in structural automotive components.

Proper Cooling Techniques

Uniform cooling is important to minimize shrinkage-related defects in die casting process.

Advanced Cooling Solutions Include:

• Jet cooling systems
• Thermal management technologies
• Controlled cooling circuits

These methods improve solidification consistency.

Read More :- A Complete Guide to Industrial Casting Machines in Modern Manufacturing

Role of Materials in Reducing Porosity

Zinc Die Casting

Zinc die casting offers several advantages in reducing porosity.

Benefits of Zinc

• Excellent fluidity
• Lower melting temperature
• Better mold filling capability
• Reduced shrinkage risk

Applications

• Precision electronic parts
• Automotive hardware
• Industrial fittings

Zinc is widely used for components which require high dimensional stability because of its casting properties.

Best Practices for High-Quality Die Casting

• Regular mold maintenance
• Simulation-based mold design
• Automated process monitoring
• Skilled process control
• Real-time thermal management systems

These practices reduce rejection rates and improve the casting consistency.

Conclusion

Understanding porosity in die-casting is important for improving the product quality and manufacturing efficiency.

Porosity can be controlled by optimizing mold design, controlling process parameters, using vacuum-assisted systems, improving cooling methods, and selecting the right materials such as zinc die casting alloys.

Modern die casting technologies continue to improve precision, productivity, and component reliability across industries.

Frequently Asked Questions About Porosity In Die Casting

How to reduce porosity in casting?

Porosity in die casting can be reduced by improving venting, optimizing injection parameters, using vacuum systems, and maintaining proper cooling.

What are the 4 types of porosity?

The 4 types of porosity are gas porosity, shrinkage porosity, micro porosity and interdendritic porosity.

What causes porosity in die casting?

Poor venting, trapped gases, incorrect temperatures, and uneven solidification are the major causes of porosity in die casting.

How to decrease porosity?

Use vacuum-assisted die casting, proper gating systems, controlled cooling, and cleaner molten metal to minimize the chances of porosity.

How to detect porosity in castings?

Porosity is detected using, X-ray inspection, CT scanning, Dye penetrant testing and Ultrasonic testing.

Is Die Casting Product Long-Lasting?

Yes. Properly manufactured die-cast products offer excellent durability and dimensional stability.

Can Die Casting Be Used for Prototyping?

Yes. Prototype die casting is used for functional testing and low-volume production.

Is Post-Machining Always Required After Die Casting?

No, not always but many die-cast parts require minimal machining due to high dimensional accuracy.
