Cold Chamber Die Casting: Process, Advantages, and Applications

Cold chamber die casting is a key process in modern manufacturing, particularly for producing high-quality metal parts. This method is especially beneficial for metals with high melting points. Let’s dive into the cold chamber die casting process, its advantages, and its various applications.

Understanding Cold Chamber Die Casting

What is Cold Chamber Die Casting?

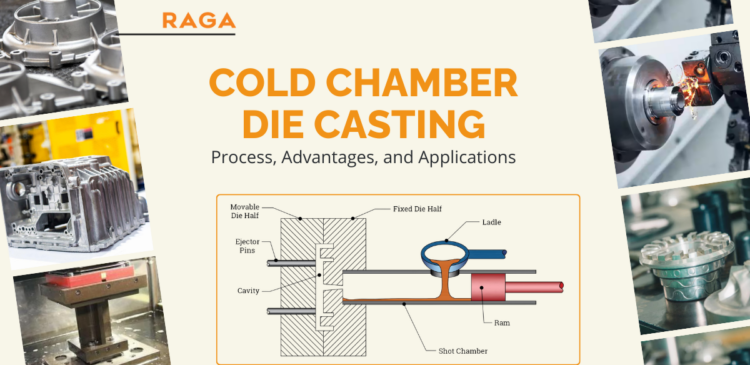

Cold chamber die casting is a manufacturing process where molten metal is poured into a separate injection chamber and then injected into the die cavity using a plunger. This method is essential for metals that are unsuitable for the hot chamber process due to their high melting points.

Cold Chamber Die Casting Process

• Step-by-Step Breakdown:
  • Melting the Metal: The metal is melted in a separate furnace.
  • Pouring: The molten metal is poured into the injection chamber.
  • Injection: A plunger forces the metal into the die cavity.
  • Solidification: The metal cools and solidifies in the mold.
  • Ejection: The finished part is ejected from the die.
• Key Components Involved:
  • Injection Chamber: Where the molten metal is poured.
  • Die: The mold that shapes the final part.
  • Plunger: Forces the molten metal into the die.

Comparison of Hot and Cold Chamber Casting

Hot Chamber Die Casting vs. Cold Chamber Die Casting

• Hot Chamber Process: The injection system is immersed in the molten metal.
  • Advantages: Faster cycle times and less metal wastage.
  • Disadvantages: Limited to low melting point metals.

• Cold Chamber Process: The injection chamber is separate from the melting furnace.
  • Advantages: Suitable for high melting point metals like aluminum and copper.
  • Disadvantages: Slower cycle times and higher energy consumption.

When to Use Cold Chamber vs. Hot Chamber Die Casting

• Factors Influencing Choice:
  • Material: High melting point metals require cold chamber die casting.
  • Production Volume: Hot chamber die casting is preferred for high-volume production with low melting point metals.
• Applications Best Suited:
  • Cold Chamber: Automotive parts, aerospace components.
  • Hot Chamber: Zinc and magnesium parts, small consumer goods.

Detailed Cold Chamber Die Casting Process

Melting and Pouring the Metal

• Preparation: The metal is melted in a furnace.
• Pouring: The molten metal is carefully poured into the injection chamber, ensuring it is at the correct temperature to prevent defects.

Injection of Molten Metal

• Mechanism: The plunger forces the molten metal into the die cavity under high pressure.
• Ensuring Proper Filling: The process must ensure complete filling of the die to avoid air pockets and incomplete parts.

Solidification and Ejection

• Cooling: The metal cools and solidifies quickly within the die.
• Ejection: The solidified part is then ejected from the die, ready for any post-casting treatments.

Materials Used in Cold Chamber Die Casting

Common Metals and Alloys

• Aluminum: Lightweight, strong, and corrosion-resistant.
• Magnesium: Lightweight and excellent for high-performance parts.
• Copper: Offers excellent electrical conductivity.
• Zinc Alloys: High aluminum content zinc alloys are also used.

Properties of Each Metal

• Aluminum: Ideal for automotive and aerospace applications due to its strength-to-weight ratio.
• Magnesium: Perfect for parts requiring lightweight and durability.
• Copper: Preferred in applications needing high electrical and thermal conductivity.
• Zinc Alloys: Used for producing intricate and precise parts.

Advantages and Disadvantages of Cold Chamber Die Casting

Advantages

• High Melting Point Metals: Suitable for casting metals with high melting points.
• Complex Shapes: Ability to produce intricate and precise parts.
• Surface Finish: Produces parts with excellent mechanical properties and surface finishes.

Disadvantages

• Energy Consumption: Higher energy consumption compared to hot chamber die casting.
• Production Rates: Slower production rates and potential for defects like shrinkage porosity.

Applications of Cold Chamber Die Casting

Industries and Applications

• Automotive: Engine components, transmission cases, and structural parts.
• Aerospace: Aircraft components, turbine blades, and structural parts.
• Electronics: Heat sinks, housings, and connectors.

Case Studies and Success Stories

• Automotive: Lightweight aluminum engine blocks and parts, improving fuel efficiency.
• Aerospace: High-performance magnesium and aluminum components for aircraft, reducing weight and enhancing performance.

Challenges and Solutions in Cold Chamber Die Casting

Common Challenges

• Porosity: Issues like gas and shrinkage porosity.
• Die Wear: Wear and tear of dies affecting the quality of parts.
• Thermal Fatigue: Repeated heating and cooling cycles causing die degradation.

Solutions and Best Practices

• Minimizing Defects: Proper mold design, controlling injection speed and pressure, and using high-quality materials.
• Advancements: Innovations in die materials and coatings to enhance die life and reduce defects.

Conclusion

Cold chamber die casting is an essential process in modern manufacturing, enabling the production of high-quality, intricate metal parts. Its suitability for high-melting-point metals and ability to produce complex shapes make it invaluable in industries like automotive and aerospace. As technology advances, cold chamber die will continue to play a pivotal role in manufacturing.

FAQs

1. What is cold chamber die casting?

   Cold chamber die casting is a manufacturing process where molten metal is poured into a separate injection chamber and then injected into the die cavity using a plunger.

2. What metals are typically used in cold chamber die casting?

   Commonly used for metals with high melting points, such as aluminum, magnesium, copper, and zinc alloys with high aluminum content.

3. What are the advantages of cold chamber die casting?

   Advantages include the ability to produce complex shapes with high precision, improved dimensional stability, and suitability for large parts.

4. What are the disadvantages of cold chamber die casting?

   Disadvantages include higher energy consumption, slower production rates compared to hot chamber die casting, and the potential for shrinkage porosity.

5. How does cold chamber die differ from hot chamber die casting?

   In cold chamber die, the injection chamber is separate from the melting furnace, whereas in hot chamber die casting, the injection chamber is immersed in the molten metal.

6. What are the key applications of cold chamber die casting?

   Key applications include automotive parts, aerospace components, consumer electronics, and industrial machinery.

7. How can porosity be minimized in cold chamber casting?

   Porosity can be minimized by controlling the injection speed and pressure, ensuring proper mold design, and using high-quality materials.
